Продаются новые коммутаторы Cisco

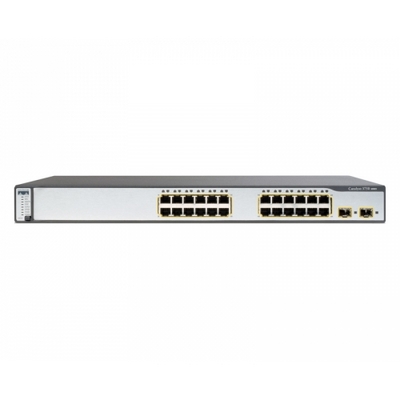

WS-C3750-24PS-S Catalyst 3750 24 10/100 PoE + 2 SFP + IPB Image - 6шт
General
Device Type Switch - stackable
Enclosure Type Rack-mountable - 1U
Width 17.5 in
Depth 11.8 in
Height 1.7 in
Weight 11.2 lbs
Memory
RAM 128 MB
Flash Memory 16 MB flash
Networking
Ports Qty 24 x Ethernet 10Base-T, Ethernet 100Base-TX
Max Units In A Stack 9
Data Transfer Rate 100 Mbps
Data Link Protocol Ethernet, Fast Ethernet
Routing Protocol RIP-1, RIP-2, EIGRP, static IP routing, RIPng
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH
Connectivity Technology Wired
Communication Mode Half-duplex, full-duplex
Switching Protocol Ethernet
MAC Address Table Size 12K entries
Status Indicators Port status, link activity, port transmission speed, port duplex mode, status
Features Flow control, full duplex capability, layer 3 switching, auto-sensing per device, IP-routing, DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, stackable, IPv6 support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s
Expansion / Connectivity
Expansion Slots Total (Free) 2 ( 2 ) x SFP (mini-GBIC)
Interfaces 24 x network / power - Ethernet 10Base-T/100Base-TX - RJ-45 female
1 x management - console - RJ-45 female
Network stack device
Miscellaneous
MTBF 209,170 hour(s)
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Compliant Standards CE, FCC Class A certified, TUV GS, BSMI CNS 13438 Class A, CISPR 24, cUL, EN 60950, EN55022, NOM, VCCI Class A ITE, IEC 60950, EN55024, UL 60950 Third Edition, CISPR 22, CSA 22.2 No. 60950, CB, FCC Part 15, MIC, AS/NZS 3548
Power
Power Over Ethernet (PoE) Yes
Power Device Power supply - internal
Voltage Required AC 120/230 V ( 50/60 Hz )
Power Consumption Operational 495 Watt
Features Redundant Power System (RPS) connector
Software / System Requirements
Software Included Cisco IOS IP Base
Manufacturer Warranty
Service & Support Limited lifetime warranty
Service & Support Details Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 113 °F
Humidity Range Operating 10 - 85%
Max Altitude Operating 9840 ft
|
|
